OVERVIEW

The Sea Brackets Mounting Disks – 6 Pack provide additional reinforcement for trolling motor installations and other demanding marine mounting applications. Installed behind the mounting surface, these heavy-duty aluminum backing disks help distribute hardware loads across a larger area instead of concentrating pressure around individual mounting holes.

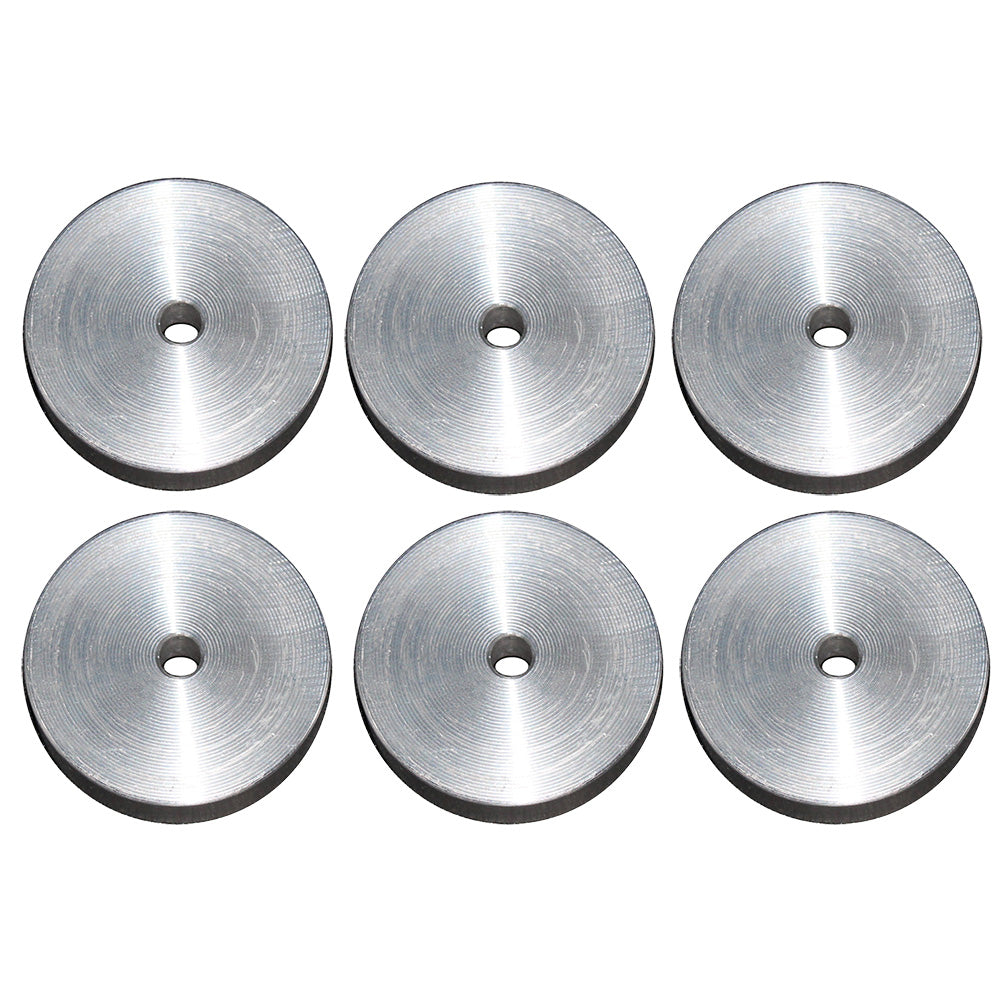

Each disk is manufactured from 1/2-inch thick 6061-grade aluminum and measures 2 inches in diameter, providing substantial support in a compact footprint. The individual disk design is especially useful in confined or difficult-to-access areas where installing a traditional one-piece backing plate may not be practical.

Designed for use with 1/4"-20 machine screw installations, these backing disks are an excellent addition when installing or reinforcing trolling motor mounting plates and other marine hardware.

KEY BENEFITS

• Reinforces trolling motor and marine hardware mounting locations
• Helps distribute mounting loads across a wider surface area
• Reduces concentrated stress around individual mounting holes
• Heavy-duty 1/2" thick 6061-grade aluminum construction
• Compact 2" diameter makes installation easier in confined spaces
• Individual disks provide greater positioning flexibility than a large backing plate
• Six-disk package supports multiple mounting points
• Ideal for new trolling motor installations or reinforcing existing setups

SPECS

• Brand: Sea Brackets
• Product Type: Mounting Backing Disks
• Quantity: 6 Disks
• Material: 6061-Grade Aluminum
• Diameter: 2"
• Thickness: 1/2"
• Hardware Compatibility: 1/4"-20 Phillips Flat Head Machine Screws
• Recommended Thread: Coarse Thread Machine Screws
• Application: Trolling Motor and Marine Hardware Mounting Reinforcement

INSTALLATION NOTES

• Use a fender washer between each backing disk and lock nut
• Designed for 1/4"-20 machine screw installations

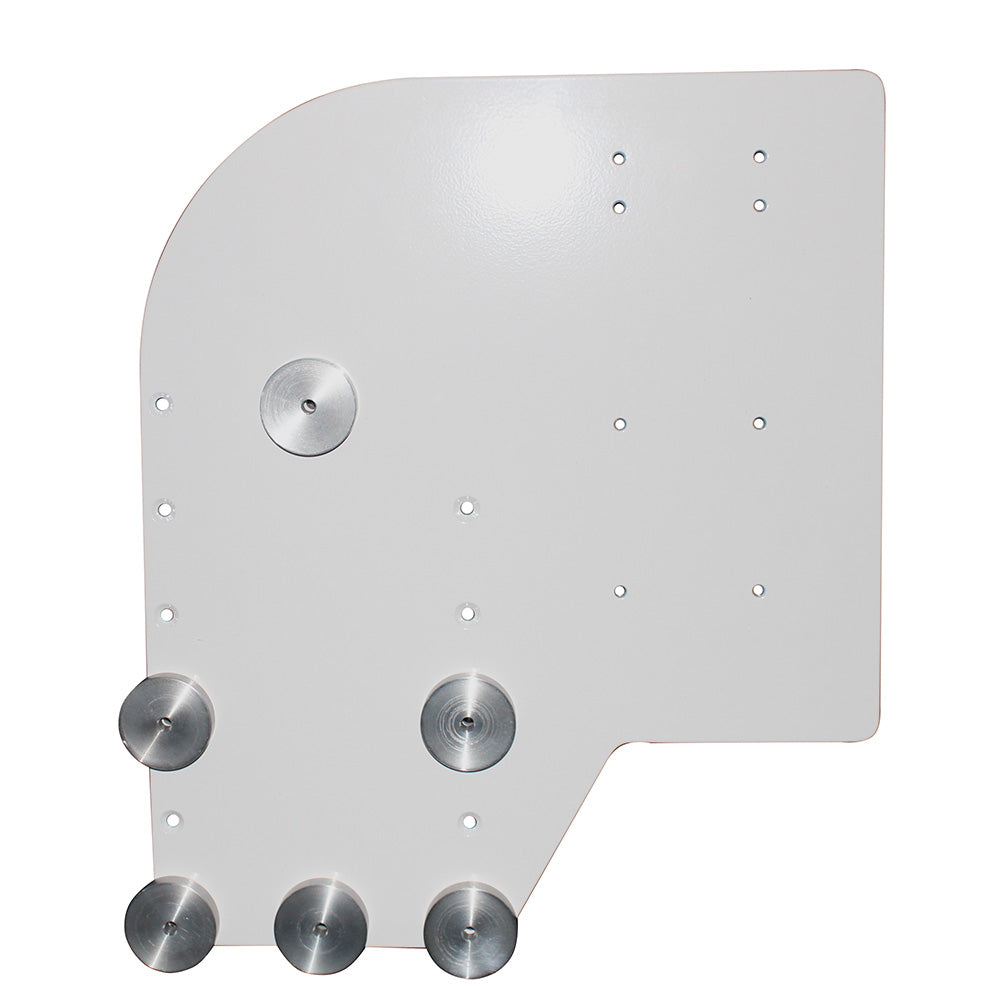

• Position disks behind the mounting surface at individual hardware locations
• Use properly sized marine-grade mounting hardware for the application
• Verify adequate clearance behind the mounting surface before installation

BEST FOR

• Trolling motor installations
• Trolling motor mounting plates
• High-thrust trolling motor setups
• Reinforcing boat deck mounting points
• Marine hardware installations
• Areas with limited access behind the deck
• Installations where a full-size backing plate is impractical
• New installations and mounting upgrades
